Industrial Printers

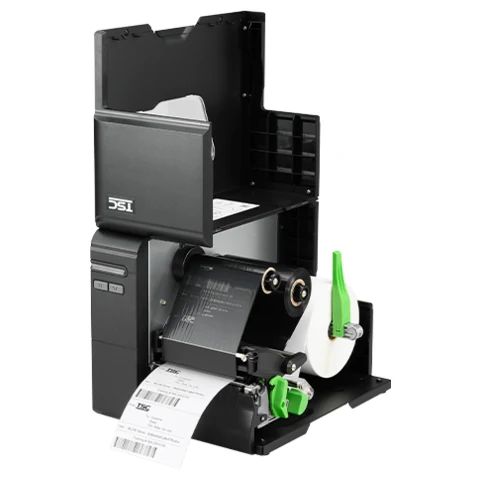

TSC ML Series (4-inch Compact)

Small footprint, effortless operation.

The ML Series industrial printers are known for their small footprint and effortless operation. An intuitive design makes it easy to balance thermal printhead pressure and ribbon tension for optimal quality, while toolless printhead and platen roller removal speeds maintenance and TSC Sense Care self-diagnostics help prevent downtime.

Request a Quote → Back to Industrial Printers →
TSC ML Series (4-inch Compact)
Key Features

Why choose the TSC ML Series (4-inch Compact).

Compact footprint ideal for height-constrained spaces like rackmounts

Generous media capacity up to 8-inch OD label rolls

Simple TPH pressure and ribbon tension adjustment

Wide-open 50 mm media space for fast label and ribbon changes

Toolless printhead and platen roller removal

TSC Sense Care self-diagnostic monitoring to prevent downtime

Technical Specifications

TSC ML Series (4-inch Compact) — full technical detail.

Print method
Thermal transfer & direct thermal
Resolution
203 / 300 dpi
Max print speed
204 mm (8") / 152 mm (6") per second
Max print width
108 mm (4.25") / 105.7 mm (4.16")
Media types
Continuous, die-cut, black mark, fan-fold, notched
Media width
20 - 118 mm (0.8" - 4.7")
Media thickness
0.06 - 0.19 mm (2.36 - 7.48 mil)
Media roll OD
203.2 mm (8")
Media core
25.4 - 38.1 mm (1" - 1.5")
Ribbon
450 m, 1" core, coated outside or inside
Ribbon width
40 - 110 mm (1.6" - 4.3")
Sensors
Gap transmissive, black mark, ribbon end, head open
Processor
32-bit RISC CPU
Memory
128 MB Flash, 128 MB SDRAM
Display
2.3" colour LCD
Interfaces
RS-232, USB 2.0, Ethernet 10/100, USB host, opt Bluetooth/Wi-Fi
Printer language
TSPL-EZD (EPL, ZPL, ZPL II, DPL)
Barcodes
Full range of 1D & 2D
Dimensions
248 x 245 x 416 mm (W x H x D)
Weight
7.7 kg (16.98 lbs)
Power
AC 100-240V, 50-60Hz; DC 24V, 60W
Operating temp.
0°C to 40°C
Humidity
25% - 85% non-condensing
Ideal Applications

The TSC ML Series (4-inch Compact) is well suited to the following environments and use cases:

Transport & Logistics Manufacturing Retail Healthcare
Speak to an Expert →
Datasheets
PDF TSC ML Series (4-inch Compact) Datasheet ↓
Interested in the TSC ML Series (4-inch Compact)? Request pricing & availability »
Related Products

You might also like.

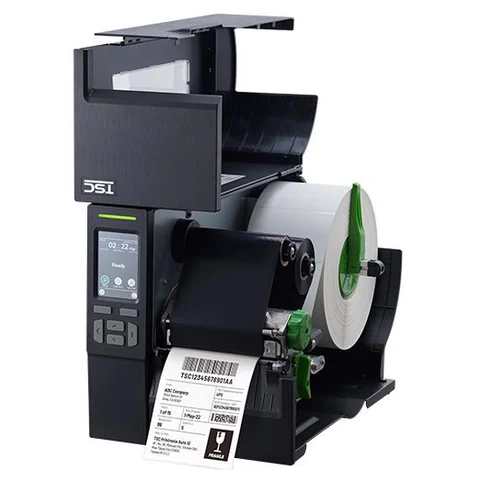

TSC MB Series (4″)

TSC MB Series (4″)

The value leader — an all-metal 4-inch printer with linerless, peel-off and on-metal RFID options.

Read More →
TSC MH Series (4″)

TSC MH Series (4″)

TSC's mainstream 4-inch printer with premium printhead, up to 600 dpi and fleet management.

Read More →
TSC MH Series (6″)

TSC MH Series (6″)

The flagship 6-inch wide-format printer for media up to 6.8 inches at top speed.

Read More →

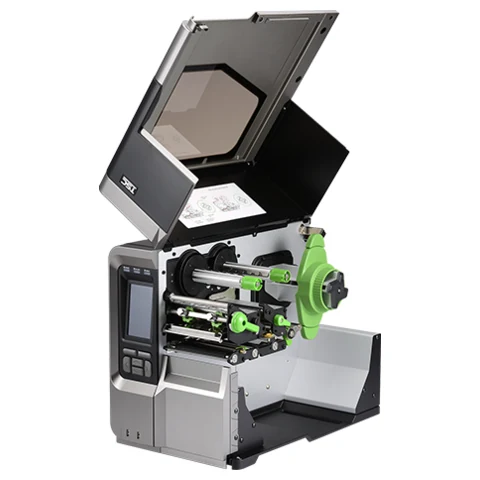

TSC MX Series (4″)

TSC MX Series (4″)

Ruggedly built for 24x7 high-volume printing, with class-leading speeds up to 18 ips.

Read More →

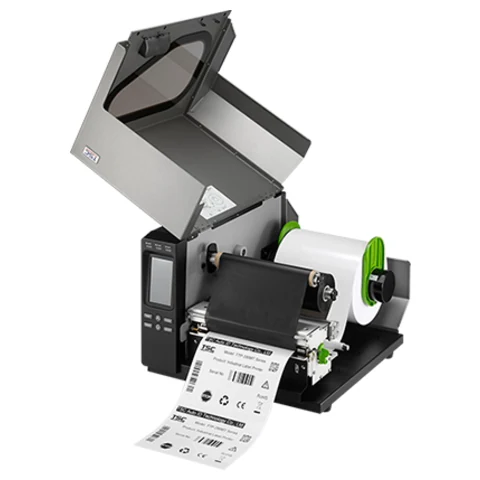

TSC TTP Series (8″)
